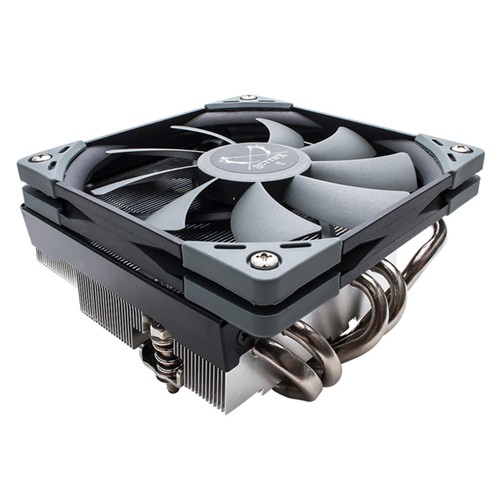

Scythe Big Shuriken 3

The third generation of the Big Shuriken CPU cooler comes with several important improvements, such as the new, asymmetrical heatsink design for unrestricted memory compatibility and the newly developed Kaze Flex 120 Slim PWM fan with 17 mm thickness. Users have the possibility to replace the pre-installed fan by using the supplied dedicated screw-set against an aftermarket fan with 25 mm thickness, if ever needed. Thanks to its six high quality, nickel-plated copper Heatpipes and the large cooling surface, Big Shuriken 3 is built to deliver superb cooling performance and outstanding compatibility to latest ITX and HTPC systems at a total height of only 69 mm.

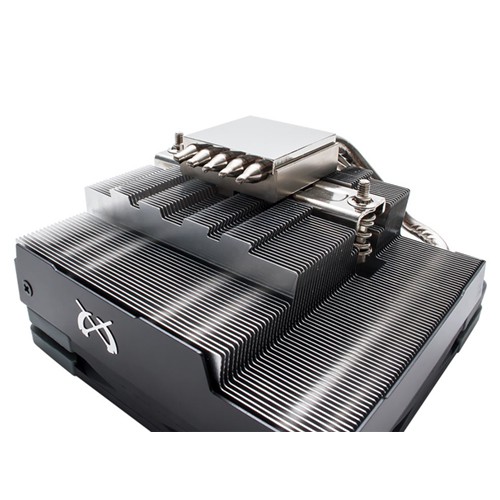

Asymmetrical Design for Outstanding Compatibility

Big Shuriken 3 has been completely re-designed with the goal to significantly improve the compatibility. This has been achieved by shifting the base-plate to the sides in contrast to regular designs with centered base-plates. In order to avoid collisions with the I/O shields of motherboards, the entire cooling fin stack has been revamped. Thanks to this new asymmetrical heatsink design, Big Shuriken 3 is able to deliver unrestricted RAM compatibility and distinguishes itself as the perfect cooling solution for high-end HTPC and ITX systems.

Kaze Flex 120 Slim PWM Fan

In order to keep the Big Shuriken 3 as low as possible, the newly developed Slim fan from the Kaze Flex series with a height of 17 mm has been used. In spite of its reduced thickness, an average life-span of 100 000 hours is achieved thanks to the self-contained fluid dynamic bearing (FDB). Kaze Flex 120 Slim PWM inherits also the rubber decouplers for reduction of vibration transfer as well as the PWM fan control ability.

Versatile Fan Mounting

For the cases, where more performance is required and enough headroom for extra height is available, users are able to equip the Big Shuriken 3 with a regular aftermarket 120 mm case fan with 25 mm thickness. The required set of screws is part of the scope of delivery and allows a fast installation process out of the box.

H.P.M.S. III Mounting System
Big Shuriken 3 comes with the secure and user-friendly third generation Hyper Precision Mounting System, which centers around a preassembled mounting bar with spring-loaded screws to guarantee perfect contact pressure. In combination with an updated backplate and rubber / plastic spacers, the system is able to offer a convenient installation process and compatibility to all current sockets including socket AM4 from AMD™ and the socket LGA 2066 from Intel™.

Model name:
Big Shuriken 3 CPU Kühler

Modell number:
SCBSK-3000

Manufacturer:
Scythe Co., Ltd. Japan

Compatibility:
Intel®:
Sockel T / LGA775
Sockel LGA1150
Sockel LGA1151
Sockel LGA1155
Sockel LGA1156
Sockel LGA1366
Sockel LGA2011(V3)
Sockel LGA2066

AMD®:
Sockel AM2
Sockel AM2+
Sockel AM3
Sockel AM3+
Sockel AM4
Sockel FM1
Sockel FM2
Sockel FM2+

Combined Dimensions:
122 x 122 x 69 mm  (more dimensions)

Gewicht:
475 g

Accessory:
Mounting parts for Intel™ and AMD™ sockets, thermal grease, installation manual, screws for mounting fans with 25 mm thickness.

Baseplate-Material:
Nickel-plated copper (more information)

Fan specifications

Model Name:
Kaze Flex 120 Slim PWM

Model No.:
SU1215FD12H-CNP

Fan Dimensions:
120x120x17 mm

Fan Speed:
300 (±200 upm) - 1.800 RPM (±10%) - PWM Controlled

Noise Level:
2,7 – 30,4 dBA

Air Flow:
8,28 - 50,79 CFM = 14 - 86,29 m³/h

Static Pressure:
0,23 – 1,35 mmH2O / 2,26 - 13,24 Pa

Bearing Typ:
Fluid Dynamic Bearing (FDB)

Input Current:
0.18 A

Voltage:
12 V
