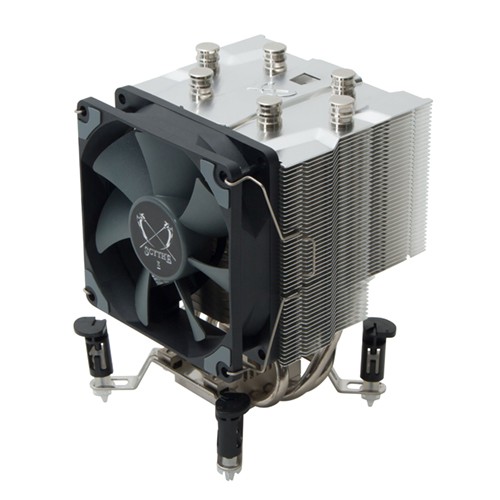

Scythe Katana 5

The fifth generation of the popular Katana CPU cooler comes with a revamped asymmetric heatsink design and total height of only 135 mm, offering unrestricted compatibility to mainboards and memory modules. The second generation of the Easy Clip Mounting System (E.C.M.S) assures a fast and easy installation process. The Intel clip is already preassabled but can be switched out with only a frew steps. Another key innovation of the Katana 5 is the newly developed Kaze Flex 92 PWM fan. It combines the high-quality Sealed Precision Fluid Dynamic Bearing with anti-vibration rubber spacers for silent operation and long life-span of 120 000 hours MTTF.

Model Name:
Katana 5

Model Number:
SCKTN-5000

Compatibility:
Intel®:
Socket LGA775
Socket LGA1150
Socket LGA1151
Socket LGA1155
Socket LGA1156
Socket LGA1366

AMD®:
Socket AM2
Socket AM2+
Socket AM3
Socket AM3+
Socket AM4
Socket FM1
Socket FM2
Socket FM2+

Dimensions:
105 x 104 x 135 mm / 4.13 x 4.09 x 5.31 in  (more dimensions)

Overall Weight:
560 g / 19.75 oz (including fan)

Accessory:
Metal Assembly Clip (Intel), Metal Assembly Clip (AMD), Thermal Grease, Installation Guide

Material of Base Plate:
Nickel-plated copper 38 x 38 mm (more information)

Fan Specifications

Dimensions of Fan:
92 x 92 x 26 mm / 3.62 x 3.62 x 1.02 inch

Noise Level:
7.3 - 28.83 dBA

Air Flow:
11.46 - 83.04 m³/h = 6.75 - 48.878 CFM

Fan Speed:
300 - 2,300 rpm (regulated via PWM)

Static Pressure:
7.35～22.46 Pa / 0.75～2.29 mmH2O
