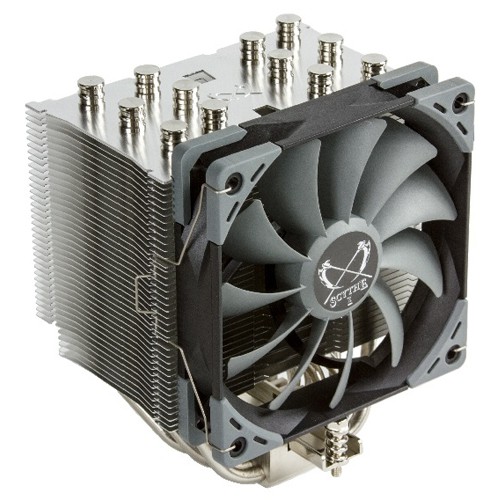

Scythe Mugen 5 Rev B

The revision B of the award-winning Mugen 5 CPU Cooler has been updated with a reworked mounting system, which now offers full compatibility with AMD's new AM4 platform. Spring-loaded screws prevent uneven pressure distribution and allow for a quick and easy assembly. The unusual shape of the heatsink provides unrivaled memory compatibility thanks to its asymmetrical design. A fan from the new Kaze Flex series is used for active cooling. Sealed Precision FDB bearing and rubberized decoupler grant the fan with an increased smoothness during operation and an average lifespan of 120,000 hours. In addition to the polished and high-quality copper base-plate, the heatpipes are now completely nickel-plated, too. The result is an excellent and award-winning tower cooler that does not compromise either in terms of optics nor performance.

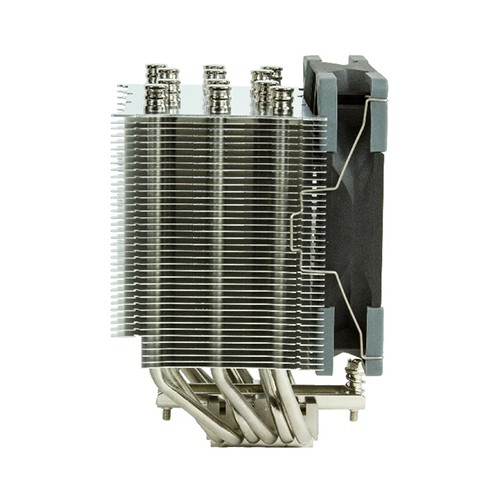

Asymmetric design
Ram modules with large passive heat sinks are no problem for the Mugen 5 Rev. B. Its heatpipes are gently sloped backwards so that the radiator is not centered directly above the baseplate, but slightly offset. This asymmetric design allows unrestricted access to the memory banks.

Kaze Flex 120 PWM Fan
The Mugen 5 Rev. B is equipped with a PWM fan with a control range of 300 to 1,200 RPM from the newly developed Kaze Flex series to ensure a high level of stability and an average lifespan of 120,000 hours. The self-contained liquid bearing (Sealed Precision FDB) reduces friction and wear to a minimum with the help of a special oil film. Rubberized pads have a decoupling effect and prevent the transmission of any vibrations.

H.P.M.S. II (Hyper Precision Mounting System II)
The updated Hyper Precision Mounting System II now features full compatibility to AMD®s new AM4 platform. A preassembled mounting bar simplifies the installation process, while spring-loaded screws prevent uneven pressure distribution. The Mugen 5 Rev. B package also includes an extra long screwdriver for easy mounting.

Dual Fan Mount Structure
Like its predecessors, the Mugen 5 Rev. B was designed to mount a second fan (not included). This leads to an increased cooling performance by making use of the push / pull principle. A second set of fan-clips is included.

Model Name:
Mugen 5 Rev.B CPU Cooler

Model Number:
SCMG-5100

EAN: 4571225056357

Compatibility:
Intel®:
Socket LGA775
Socket LGA1150
Socket LGA1151
Socket LGA1155
Socket LGA1156
Socket LGA1366
Socket LGA2011 / 2011-v3 (Square ILM)
Socket LGA2066

AMD®:
Socket AM2
Socket AM2+
Socket AM3
Socket AM3+
Socket AM4
Socket FM1
Socket FM2
Socket FM2+

Overall Dimensions WxHxD:
130 x 154,5 x 110 mm / 5.12 x 6.08 x 4.33 inch (including fan - more details)

Weight:
890 g / 31.4 oz

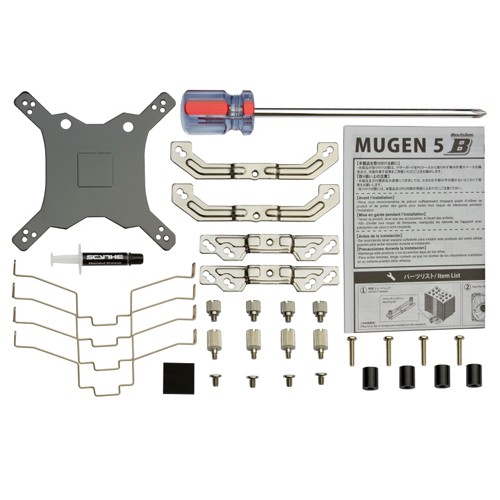

Accessory:
Mounting parts for Intel and AMD sockets, fan, fan clips, thermal grease, installation manual.

Baseplate Material / Heatpipes:
Nickel-plated copper (additional information)

Please note that an original backplate with screw mounting is needed for installation on mainboards with AMD sockets. Please check before buying if the backplate is fixed by screws (example)! If the backplate uses plastic-pins, mounting of this cooler is not possible.

Fan Specifications

Model Name:
Kaze Flex 120 PWM

Dimensions:
120 x 120 x 27 mm / 4.72 x 4.72 x 1.06 inch

Noise Level:
4 ~ 24,9 dBA

Air Flow:
16,6 ~ 51.17 CFM / 28,2 ~ 86,93 m³/h

Fan Speed:
300 (±200 rpm) ~ 1.200 rpm (±10%) (PWM-controlled)

Static Pressure:
0,75 ~ 10,3 Pa / 0,076 ~ 1,05 mmH²O

Bearing Type:
Sealed Precision FDB

Voltage:
12V

MTTF:
120.000 Hours (25°C)
